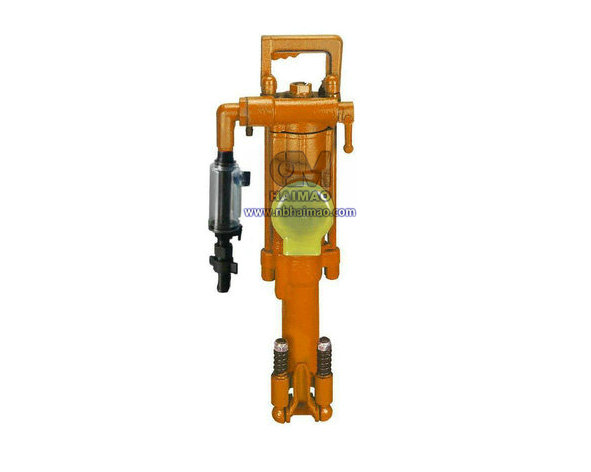

YT23D (7655D) Jackleg Drill
   Hits:   Date:2005 year 09 month 07 Font:[Large] [Midfield] [Small]


Specifications
Model YT23D ( 7655D )
Weight 24 kg
Length 668 mm
Cylinda Diameter 70 mm
Stoke 70 mm
Air Hose I.D. 25 mm
Water Hose I.D. 13 mm
Shank Size B22 x 108 mm
Air Consumption ≤ 38 L/s
Impact Frequency ≥ 28 Hz
Impact Energy ≥ 45 J
Air-Leg type FT160A
Oil Lubricator FY200








Tags:Air leg rock drill Pusher leg rock drill Pneumtic rock drill Rock drill Jackleg drill Feeder leg drill Drifter Stoper YT29A YO29 YT28 YT27 YT26 YTP26 YT25 ZY24 YT24 YT23 7655 YT23D 7655D MZ7665 YSP45 TY24C Y26 Y24 Y22LY Y21LY Y20LY Y19A YO18 QJ15
